Playground For Playgrounds Castle With Helical Slide And Wave

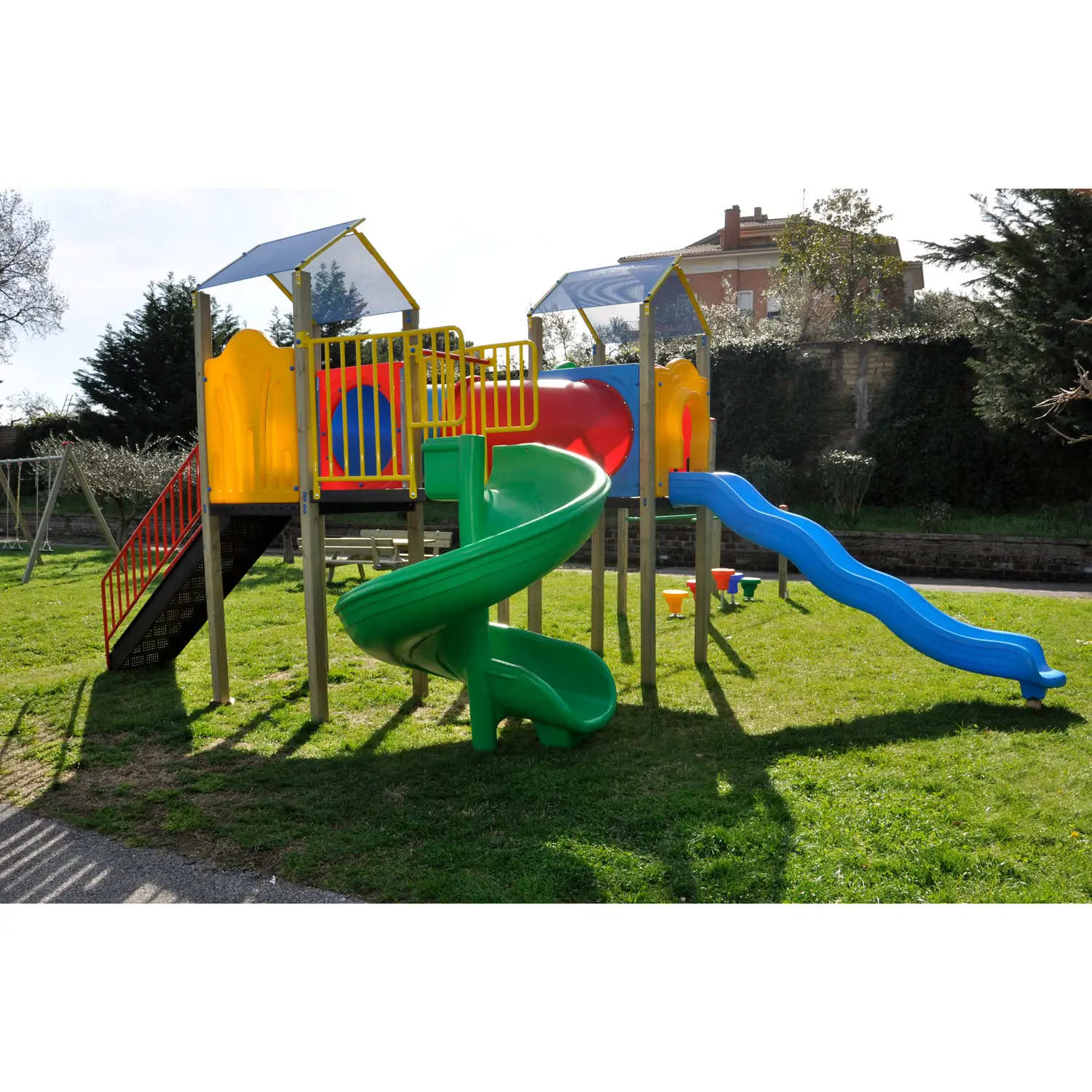

Playground with activity area consisting of two towers connected by a tunnel passage. Installed on the side is a tarantella, an up-and-down made with balance points and a fixed-loop path.
The supporting structure of the tower is made of 90x90 mm autoclave-impregnated Nordic pine laminated poles with rounded corners, while the platforms, placed at a height of 150 cm and the access staircase, are made of steel with PVC coating.
The balustrades of the staircase and helical slide are made of 32x2mm and 25x1.5mm steel tube all hot-dip galvanized and lacquered for outdoor use.
The pitched roofs consist of four 40x5mm steel plate profiles placed above and below a _{15⁄10-thick} wire mesh, all hot-dip galvanized and outdoor lacquered.
The chutes and balustrades are made of UV-resistant polyethylene.
The towers are connected by a fixed tunnel passage made of rotational polyethylene with an inner diameter of 76 cm.
Attached to the tower is a fixed ring walkway composed of 60x3 mm tube support structure and 5 32x2 mm tube rings, all hot-dip galvanized and lacquered for outdoor use and supported by 90x90 mm autoclave-impregnated Nordic pine lamellar poles with rounded corners and polyethylene post cap.
The up-down path consists of 5 rotational polyethylene mushrooms, placed on 3 heights, each supported by a d.48x3 mm steel tube, hot-dip galvanized to be cemented. Then there are 2 handrails made of 33x3 mm steel tube, galvanized and lacquered, supported by laminated poles of northern pine impregnated in autoclave.
The lean-to tarantella consists of a 300-mm-diameter, 750-mm-long cylinder made of rotational polyethylene, which rotates thanks to two bearings anchored to the supporting poles. Above the tarantella, there is a support tube, useful for the child to hold on to while playing, made of 33x3 mm steel tube, lacquered for outdoor use.
The tower poles and every other pole also have galvanized brackets for attachment to the ground.
The hardware in the mounting kit is made of galvanized steel and equipped with the appropriate polyethylene screw cap.
All metal parts are made of galvanized steel and lacquered with weather-resistant colors.

The item is designed to be placed in public parks schools and green areas.

Dimensions: 918x685 cm (overall dimensions)

Fall height amx: cm 210

Safety area: 1145x1035 cm (76 square meters of anti-trauma flooring)
