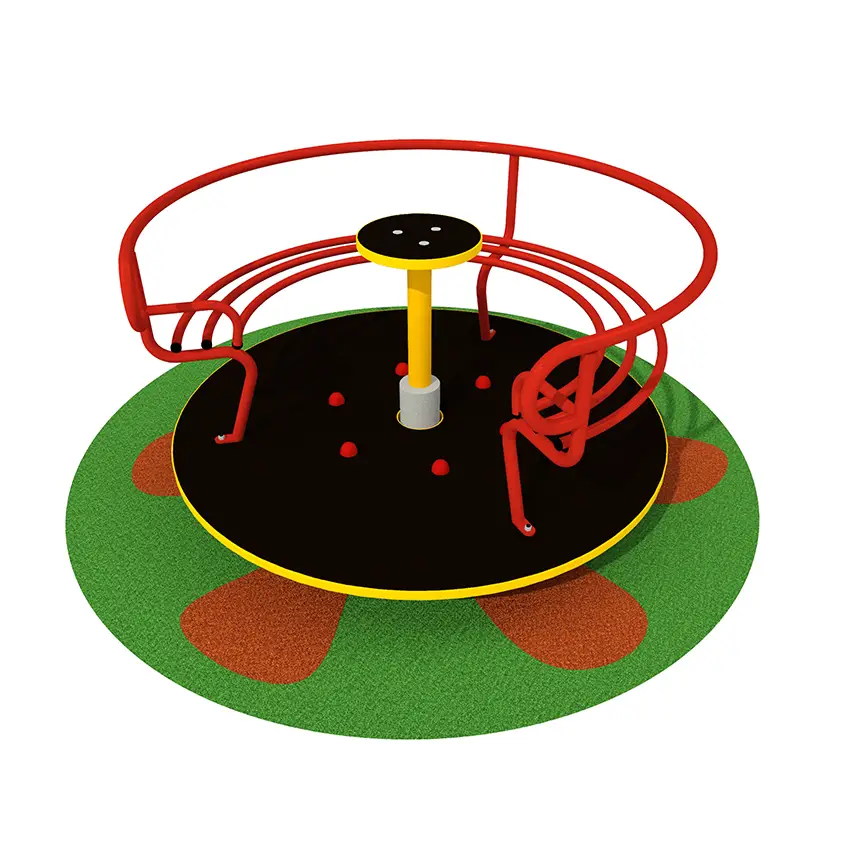

Consuelo Carousel 4 Seats
- ✅ Certified according to European Standards EN 1176 by the TÜV - SÜD Institute.
- ✅ Corrosion-resistant electro-galvanized steel frame.
- ✅ Non-slip platform made of multilayer wood filmed for safety.
- ✅ Smooth rotation system due to load roller bearings.
- ✅ Baked coating at 180°C for a durable finish.
Full description
The Park Carousel "Consuelo" is a game certified in accordance with European Standards EN 1176 by the German Institute TÜV - SÜD. Here is an overview of its main features:
Main components:
Supporting structure: The supporting structure of the merry-go-round consists of a round electro-galvanized steel plate with a diameter of Ø 50 cm and a central electro-galvanized steel tube with a diameter of Ø 9 cm. These materials are used to ensure corrosion resistance and durability.
Platform: The platform on which children sit is made of filmed plywood (carply). This platform has non-slip knurling to ensure a secure grip. A circular sofa with a seat and back made of galvanized and painted round steel tube is mounted above the platform.
Handlebar: The merry-go-round has a handlebar made of filmed plywood (carply). The handlebar is designed to provide a comfortable and safe grip point for children.
Rotation system: Rotation of the carousel is through a system on load roller bearings, which ensures smooth and safe rotation.
Assembly: The carousel is assembled using 8.8 galvanized steel bolts and self-locking nuts. Nut cover elements are made of standard-colored nylon.
Painting: The carousel is baked painted at a temperature of 180°C to ensure a strong and durable finish.
Additional technical specifications:
Age of use: The merry-go-round is designed for children between the ages of 2 and 8.
Maximum weight: The maximum weight capacity supported by the carousel is 12 kg.
Maximum length: The maximum length of the carousel is 110 cm.
Assembly time: Assembly takes about 1 hour.
Drop height: The drop height is 13 cm.
Maximum footprint: The maximum footprint is Ø 110x60 cm.
Number of users: The carousel can accommodate up to 3 children at the same time.
Minimum space: A minimum space of Ø 500 cm around the carousel is required to ensure safety during use.
Impact area: The required impact area for this ride is 21 square meters.
In summary, the "Consuelo" Carousel is a safe and fun playground option intended for children of different age groups. It is constructed of durable materials and offers smooth and safe rotation for an enjoyable play experience. Baked painting contributes to its durability over time.
